Raise your precision to the next level

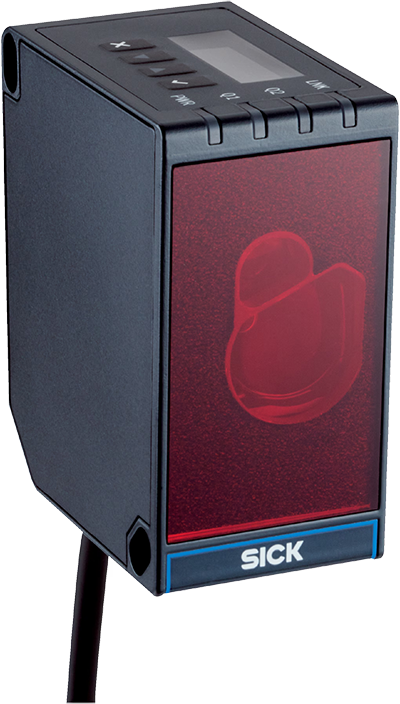

The Dx80 is a distance measurement sensor that combines long measuring ranges with outstanding precision. Our engineers have achieved this by selecting advanced materials and technology to create this cutting-edge sensor ready for the world . The DT80 provides unparalleled accuracy of +/- 2 mm at a maximum range of 80 m. Whether you’re a shop-floor architect, professional systems engineer or mobile machine enthusiast, our distance measurement sensor is the perfect tool for any project. Its minimalistic design lets you effortlessly use it in confined spaces. And tough environmental conditions can’t harm it: This sensor is built to last.

REQUEST A DEMONSTRATION

• Highly accurate measurements boost the quality of your processes and saves precious resources

• Long measurement range fulfills the needs of a variety of applications

  Access to extensive sensor data thanks to IO-Link for efficient control of your processes

• The icon-supported color display provides an intuitive user experience and makes commissioning straightforward
• Immunity to ambient light and temperature changes ensures maximum performance in demanding environments.
• The compact metal housing offers excellent options for integrating the sensor in confined installation situations

• Accuracy of +/- 2 mm with a maximum resolution of 0.1 mm
• Measuring ranges from 0.05 m up to 80 m on white and up to 14 m on black
• IO-Link V1.1, analog and digital output

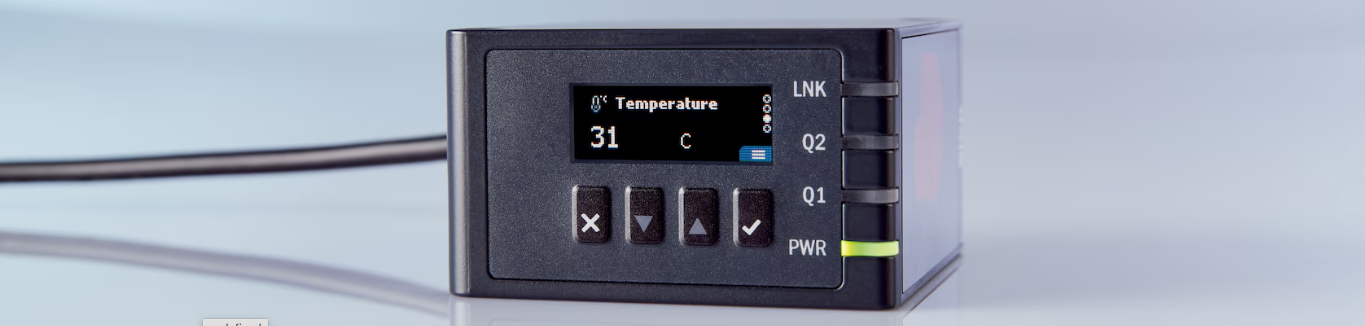

• TFT color display and user-friendly menu navigation
• Elegant metal housing in proven design
• Protection class IP 65 and IP 67
• Reusable existing accessories

The power of precision

In production processes, the ability to accurately measure distances is crucial for ensuring consistent product quality and reducing downtimes.

Don’t settle for a generic distance sensor — experience the difference!

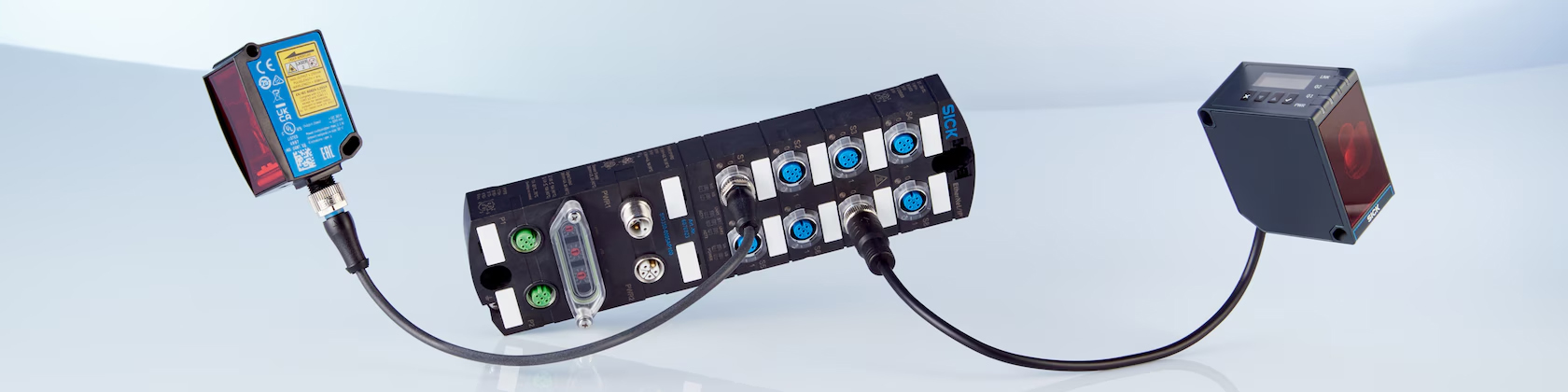

Seamless system integration through IO-Link

DT80 provides both an analog and a digital output signal, becoming intelligent through point-to-point communication through the IO-Link interface. Simply plug the sensor into your existing IO-Link network and you’ll be up and running in no time. With IO-Link, you can easily and reliably transfer data between sensors, actuators and your control system, making the sensor an ideal solution for smart factories and Industry 4.0 applications.

Connect, Control, and Communicate

Countless possibilities

Versatile and durable, the DT80 can be used in countless applications. Its robust metal housing and high IP rating ensure the sensor’s reliability in harsh environments. During significant temperature fluctuations and strong sunlight exposure, the DT80s continue to do their job .
